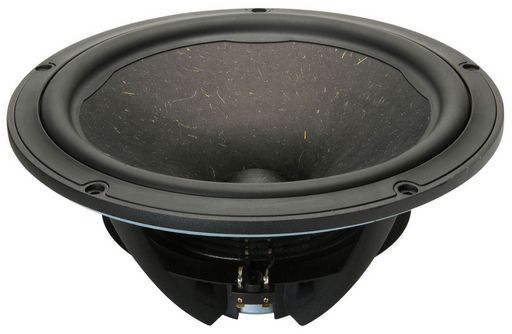

This is a VIFA 12 NE SERIES SPEAKER of brand Vifa.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title VIFA 12 NE SERIES SPEAKER
Notes Aerodynamic cast aluminium frame also acts as a heatsink. Sculpted design promotes cooling and reduces reflections. High-strength compact neodymium iron boron motor assembly. Coated natural wood fibre cone with half-roll rubber surround. Pentacone cone technology for improved frequency response. Long-throw voice coil on a 2” diameter titanium former. Copper pole piece cap.
Depth142.5mm
Fs19.9Hz
Impedance4Ω (Re 2.8Ω)
Impedance (Ohm)4 ohm
Inch12
Le0.38mH
Mag.2680g
ManufacturerVifa
Mms113.9g
Power150Wrms
Power (RMS)101-150 Watt
Price Typeeach
Prms150W
Qes0.32
Qms15.6
Qts0.31
QTY1
Re2.8Ω
Sd506.7cm²
Sens.88.6dB
Size12'
TypeWoofer
Vas201.66L
Width315mmØ
Zn
Cms0.5592mm/N
Coil51.3mmØ
SKU NoWES_NE315W-04_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN NE315W-04
SKU WES_NE315W-04_1
Brand Vifa
