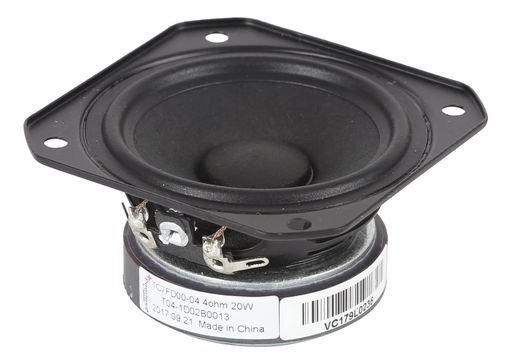

This is a VIFA BY TYMPHANY 2½ FULL RANGE PAPER CONE WOOFER of brand Peerless.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title VIFA BY TYMPHANY 2½ FULL RANGE PAPER CONE WOOFER
Notes Tymphany's TC7FD00-04 2-1/2 full-range speaker brings classic hi-fi capabilities to compact music and media systems. Tymphany's patented PentaCut paper cone technology improves musicality and accuracy, and the driver features a cost-effective ceramic ferrite magnet. A copper cap on the pole piece controls system impedance, thereby extending the upper frequency range. The TC7FD00-04 is ideally suited for use in flat panel televisions and sound bars, MP3 and cell phone docking stations, hi-fi speaker line arrays, and multimedia PCs.Cost-effective ceramic ferrite magnet and stamped steel framePatented NRSC PentaCut cone technology controls resonances and improves performanceUnder-spider venting increases power handlingHalf-roll rubber surround for unrestricted travelCopper pole piece cap controls impedance and extends HF response
Power20W
Coil19.3mm
Impedance4Ω
Depth33.3mm
Sens.86.36dB
Re3.22Ω
Qms3.66
Qes1.22
Qts0.92
Vas0.51L
Cms0.75mm/N
Fs143.42Hz
Mms1.6g
Zn4Ω
Le0.02mH
Diam.75mmØ
ManufacturerPeerless
Impedance (Ohm)4 ohm
Power (RMS)0-50 Watt
SKU NoWES_TC7FD00-04_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN TC7FD00-04
SKU WES_TC7FD00-04_1
Brand Peerless
