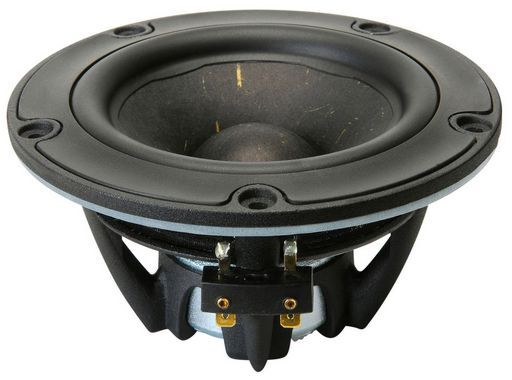

VIFA BY TYMPHANY 4 NE SERIES SPEAKER
NEODYMIUM-IRON-BORON MAGNET
SKU code: WES_NE123W-08_1
This is a VIFA BY TYMPHANY 4 NE SERIES SPEAKER of brand Vifa.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | VIFA BY TYMPHANY 4 NE SERIES SPEAKER |
| Notes | NEODYMIUM-IRON-BORON MAGNET Features an innovative sculpted, open cast aluminium basket design that minimizes internal acoustic reflections and supplements the neodymium motor’s dedicated heat sink. The cone is constructed of a coated natural wood fibre, with a butyl rubber surround designed by finite element analysis for linearity. Motor copper cap reduces inductance and extends high frequency performance.Cast aluminium frame promotes motor coolingSculpted design improves airflow and reduces reflectionsHigh-strength compact neodymium magnet systemProprietary coated natural wood fiber cone with half-roll rubber surroundLong-throw 1-1/4 voice coil on titanium formerCopper pole piece cap for extended HF response8 ohm nominal impedance |
| Power | 45Wrms |
| Coil | 32.4mmØ |
| Impedance | 8Ω (Re 6.3Ω) |
| Sens. | 87.2dB |
| Qms | 4.98 |
| Qes | 0.37 |
| Qts | 0.35 |
| Vas | 5.9L |
| Fs | 61Hz |
| Manufacturer | Vifa |
| Depth | 58.3mm |
| Impedance (Ohm) | 8 ohm |
| Inch | 4 |
| Le | 0.06mH |
| Mag. | 410g |
| Mms | 4.7g |
| Power (RMS) | 51-100 Watt |
| Price Type | each |
| Prms | 45W |
| Cms | 1.4332mm/N |
| QTY | 1 |
| Re | 6.3Ω |
| Sd | 54.1cm² |
| Size | 4' |
| Type | Full Range |
| Width | 123mmØ |
| Zn | 8Ω |
| SKU No | WES_NE123W-08_1 |
