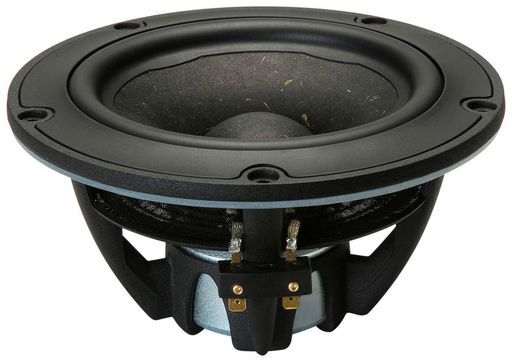

VIFA BY TYMPHANY 5¼ NE SERIES SPEAKER
NEODYMIUM-IRON-BORON MAGNET
SKU code: WES_NE149W-08_1
This is a VIFA BY TYMPHANY 5¼ NE SERIES SPEAKER of brand Vifa.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | VIFA BY TYMPHANY 5¼ NE SERIES SPEAKER |
| Notes | NEODYMIUM-IRON-BORON MAGNET Vifa’s NE Series full-range drivers feature an innovative sculpted, open cast aluminium basket design minimises internal acoustic reflections. Cone is constructed from coated natural wood fibre, with a butyl rubber surround designed by finite element analysis for linearity of performance. FEA techniques also contribute to the titanium bobbin motor’s copper cap, which reduces inductance and extends high frequency performance. |
| Power | 60Wrms |
| Coil | 38.4mmØ |
| Impedance | 8Ω (Re 6.3Ω) |
| Sens. | 87.0dB |
| Qms | 8.19 |
| Qes | 0.40 |
| Qts | 0.38 |
| Vas | 8.54L |
| Fs | 54Hz |
| Manufacturer | Vifa |
| Le | 0.08mH |
| Cms | 0.8425mm/N |
| QTY | 1 |
| Mms | 10.3g |
| Width | 149mmØ |
| Inch | 5.25 |
| Size | 5.25' |
| Power (RMS) | 51-100 Watt |
| Re | 6.3Ω |
| Prms | 60W |
| Mag. | 680g |
| Depth | 73mm |
| Impedance (Ohm) | 8 ohm |
| Sd | 85cm² |
| Zn | 8Ω |
| Price Type | each |
| Type | Subwoofer |
| SKU No | WES_NE149W-08_1 |
