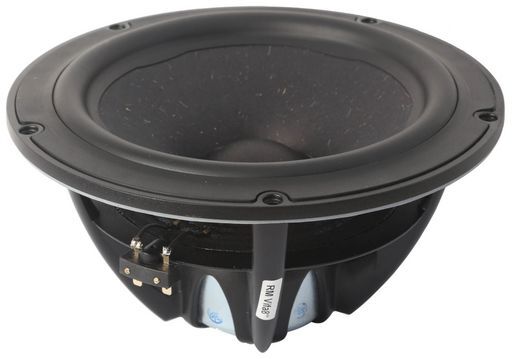

This is a VIFA BY TYMPHANY 8 NE SERIES SPEAKER NEODYMIUM of brand Vifa.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title VIFA BY TYMPHANY 8 NE SERIES SPEAKER NEODYMIUM
Notes Aerodynamic cast aluminium frame also acts as a heatsink. Sculpted design promotes cooling and reduces reflections. High-strength compact neodymium iron boron motor assembly. Coated natural wood fibre cone with half-roll rubber surround. Pentacone cone technology for improved frequency response. Long-throw voice coil on a 51mm diameter titanium former. Copper pole piece cap for extended HF response and lowered back EMF.
TypeSubwoofer
Size8'
Price Typeeach
Power125Wrms
Coil51.3mmØ
Width225mmØ
Impedance4Ω (Re 3.1Ω)
Depth112mm
Mag.1860g
Sens.90.7dB
Re3.1Ω
Qms9.8
Qes0.35
Qts0.33
Vas44.82L
Sd227cm²
Cms0.6195mm/N
Fs33Hz
Mms37.2g
Zn
Le0.16mH
Diam.225mmØ
ManufacturerVifa
QTY1
Power (RMS)101-150 Watt
Prms125W
Impedance (Ohm)4 ohm
Inch8
Brand.Vifa
SKU NoWES_NE225W-04_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN NE225W-04
SKU WES_NE225W-04_1
Brand Vifa
