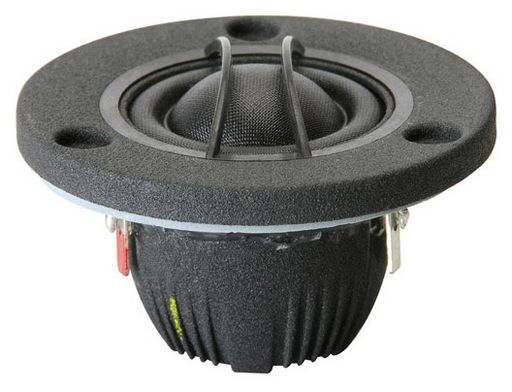

This is a VIFA TYMPHANY 3/4 DOME NEODYMIUM TWEETER of brand Vifa.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title VIFA TYMPHANY 3/4 DOME NEODYMIUM TWEETER
Notes The Vifa NE product line of tweeters has leading-edge transducer technology packaged in cutting edge, stylistic designs. The surround fabric (and dome) has been woven from silk and coated for reproducing beautiful acoustics in the extended high end. Vifa’s finite element analysis designed high power, high performance, neodymium-iron-boron (NdFeB) motor provides high output in a small unit. Attractive Aluminium face plate and plastic protective grille. This new generation of tweeter offer compact, powerful, efficient level of advanced driver technology. Available in two types of dome material:
TypeTweeter
Size0.75'
Price Typeeach
Power100Wrms
Coil19.3mmØ
Width52mmØ
Impedance4Ω (Re 2.7Ω)
Depth25mm
Mag.60g
Sens.88.57dB
Re2.7Ω
Qms3.4
Qes2.27
Qts1.36
Vas0.01L
Sd4.9cm²
Cms0.2229mm/N
Fs743Hz
Mms0.21g
Zn
Le0.01 mH
ManufacturerVifa
Inch0.75
QTY1
Pwr100 W System
Prms100W
Fr2.5 K Hz - 20 K Hz
Revc2.7 ohm
Freq.2500 Hz - 20000 Hz
Impedance (Ohm)4 ohm
Power (RMS)51-100 Watt
Outer Dimensions53 mm (Overall Dia)
Brand.Vifa
SKU NoWES_NE19VTS-04_1
