WGAP864 MULTI-ZONE EXPANDER
ADD 8 MORE ZONES (UP TO 64)
SKU code: WES_WGAP864EXP1664_1

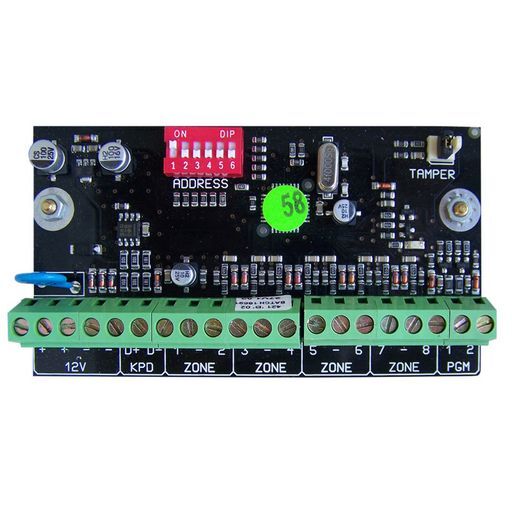

This is a WGAP864 MULTI-ZONE EXPANDER of brand Watchguard.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | WGAP864 MULTI-ZONE EXPANDER |
| Notes | ADD 8 MORE ZONES (UP TO 64) Each board adds an additional 8 zones. Designed to expand the WGAP864 system up to 64 zones by simply plugging a module into the external keypad bus. Dip switch sets programmable zone #.Each 8-Zone expander provides an extra 8 zones.Programmable for Zones 17 through to 64 maximum8 wired, end-of-line supervised zone inputs2x positive 12V programmable outputs that supply 80mA of currentThe outputs are normally open relay (max. 14Amp) contacts & can be either pulsed or latchedOptional tamper per zone using double end-of-line resistorsProgrammable loop response timeDedicated box tamper inputExcellent protection against lightning NOTE: Zone 9 - 16 are reserved for the onboard plug-in expander and cannot be allocated to the wired bus expander zones, even if the onboard expander is not used. |
| Description | Add an extra 16 Zones (add more moduals for up to 64 Zones). |
| Manufacturer | Watchguard |
| Zone | +16 |
| Series | WGAP864 |
| Item | Alarm |
| Style | Module |
| Channel | 8 CH |
| SKU No | WES_WGAP864EXP1664_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | WGAP864EXP1664 |
| SKU | WES_WGAP864EXP1664_1 |
| Brand | Watchguard |
