XXLS 10 PASSIVE RADIATOR
WAS PEERLESS 830481
SKU code: WES_26W0-00-00_3

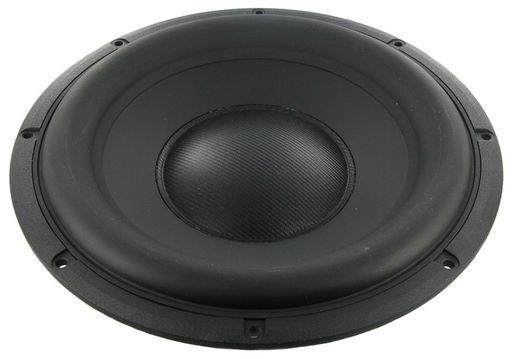

This is a XXLS 10 PASSIVE RADIATOR of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | XXLS 10 PASSIVE RADIATOR |
| Notes | WAS PEERLESS 830481 Identical to a 10” XLS driver but without a magnet and the voice coil has been replaced with a weight. Passive radiators replace the port by adding a mass equivalent to the volume of air in a 10” tube. This eliminates air velocity noises and enables very low tuning F without ridiculously long or narrow port dimensions. Suit small enclosures. You can fine tune this mass by adding weight to the M5 threaded hole enabling excellent control over the final design. Made in Denmark by Scan-Speak. |
| Description | 26cm Passive Radiator, Alu Cone, Adjustable Mass |
| Type | Passive |
| Size | 10' |
| Price Type | each |
| Power | Passive |
| Width | 270mm |
| Impedance | Passive |
| Depth | 70.9mm |
| Re | Passive |
| Qms | 13.7 |
| Vas | 95L |
| Sd | 352cm² |
| Cms | 0.55mm/N |
| Fs | 11Hz |
| Mms | 400g |
| Zn | Passive |
| Rms | 1.97Kg/s |
| Xmax | 28mm |
| Manufacturer | Scan-speak |
| QTY | 1 |
| Page | 1 |
| Inch | 10 |
| Series | Discovery |
| Prms | Passive |
| Impedance (Ohm) | Passive |
| Power (RMS) | Passive |
| Brand. | Scan-speak |
| SKU No | WES_26W/0-00-00_3 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | 26W/0-00-00 |
| SKU | WES_26W0-00-00_3 |
| Brand | Scan-speak |
